STEREOPHONIC SOUND RECORDING
OMNIDIRECTIONAL MICROPHONES [Home Page]
Select the Stereophonic Recording Angle (Front Coverage Angle)

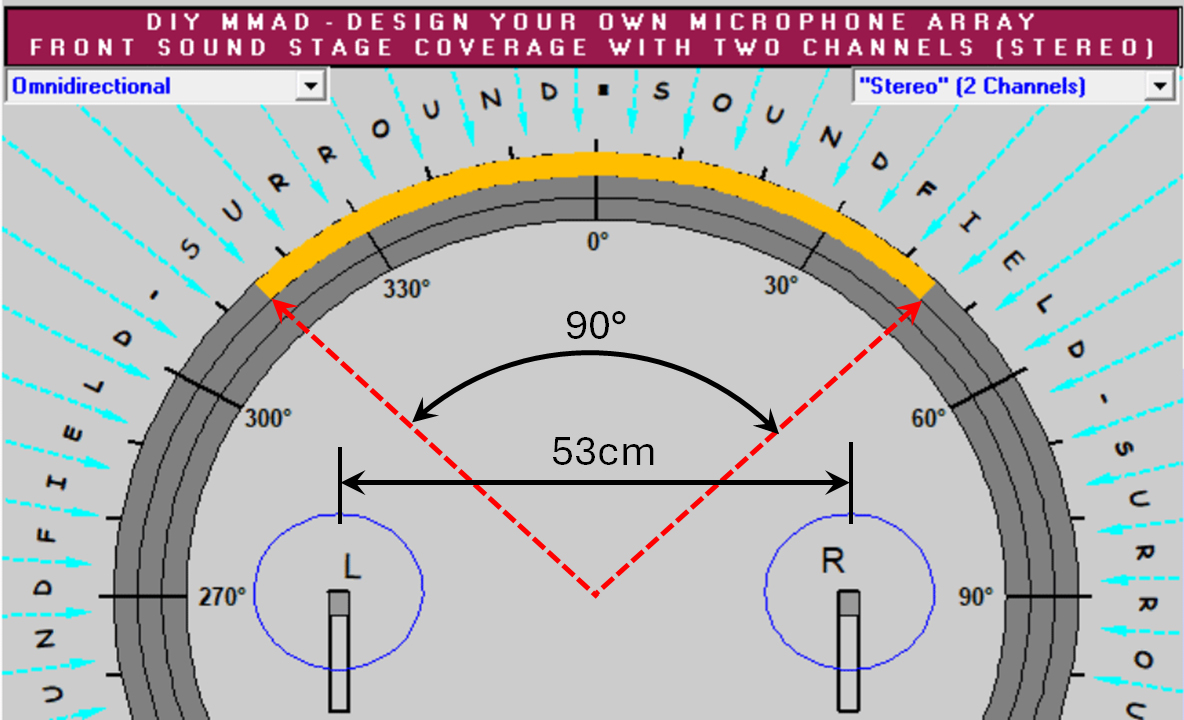

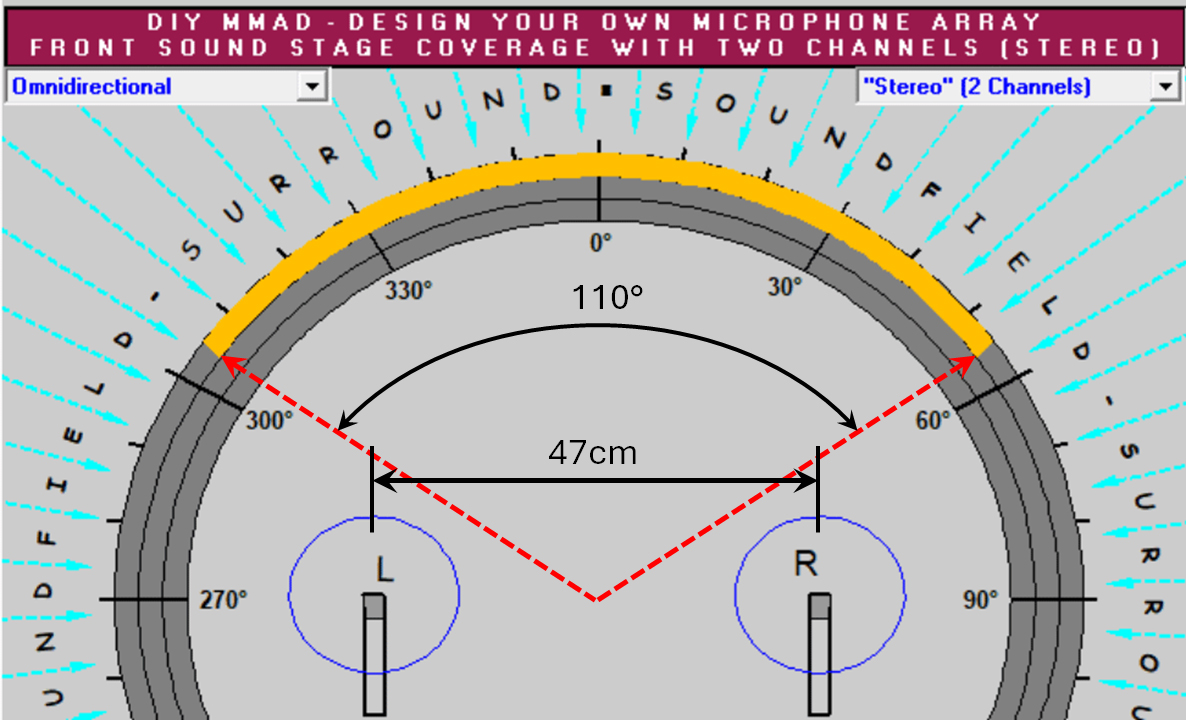

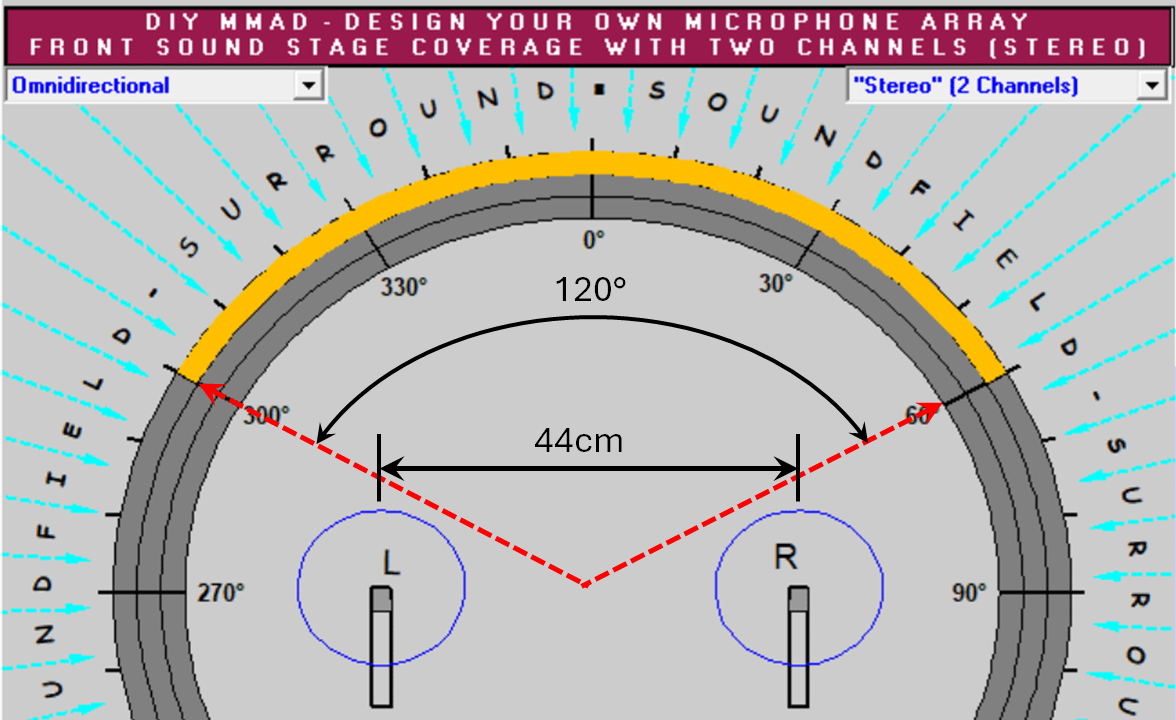

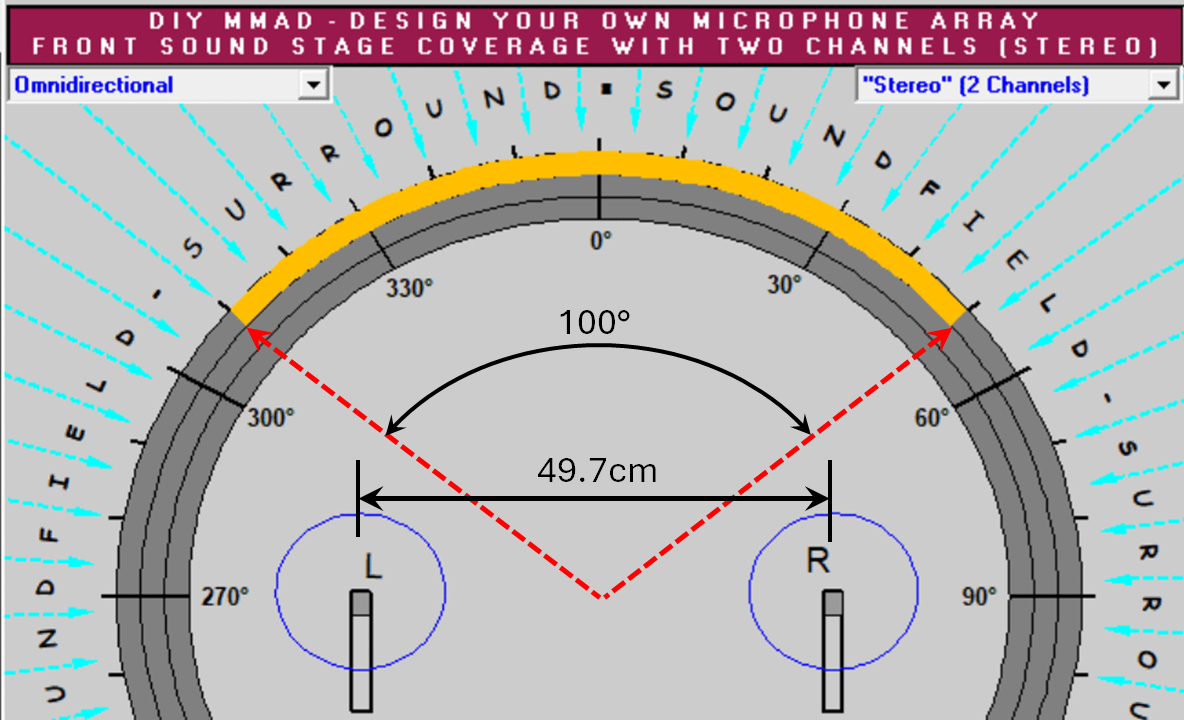

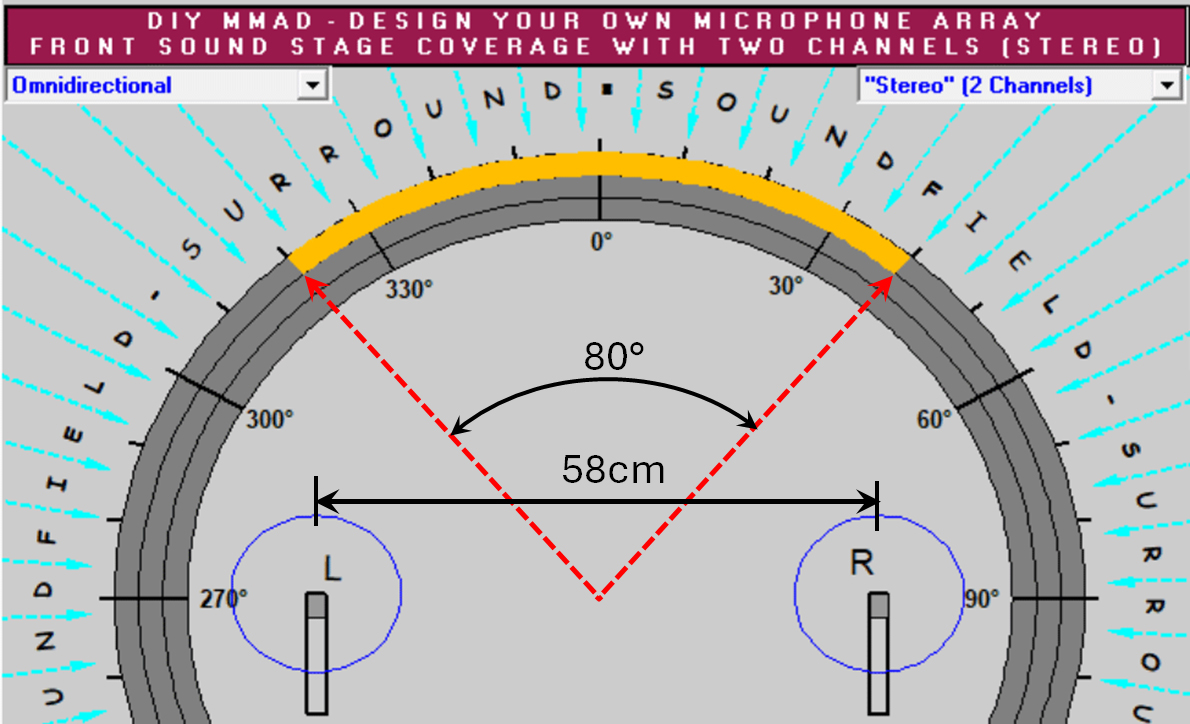

This will then show you the details for the corresponding
basic omnidirectional microphone array.

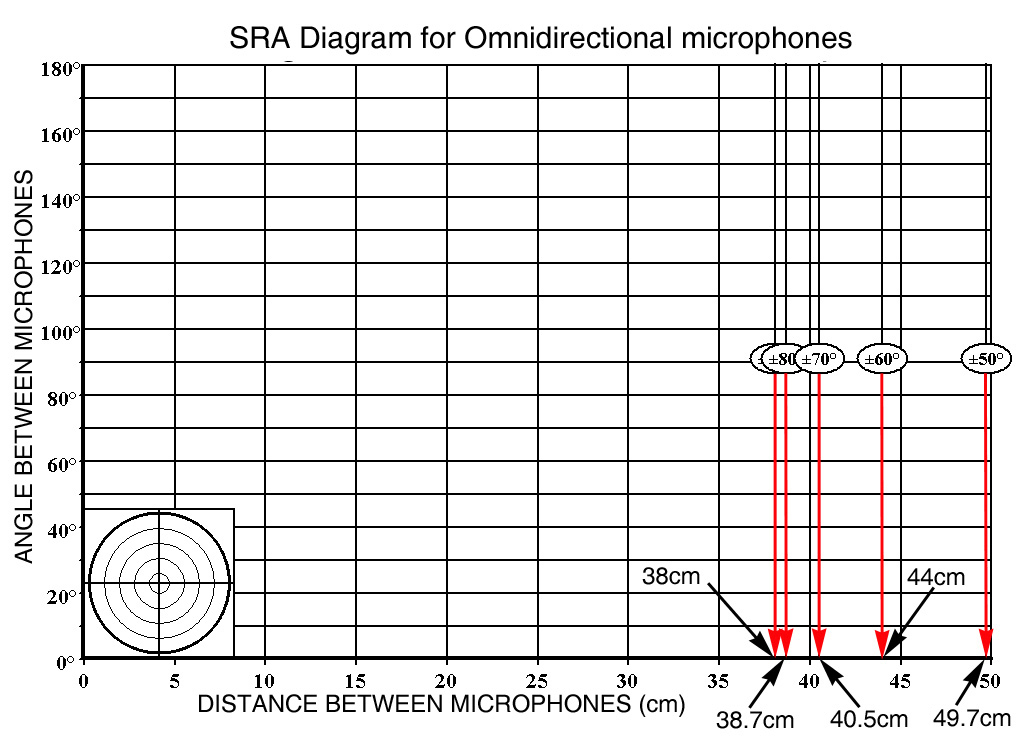

Select the SRA diagram to see other combinations of
distance and angle for different Stereophonic Recording Angles.
For truly omnidirectional microphones (diaphragm<12mm), the orientation of the microphone
is unimportant. However for large diaphragm microphones, it may be necessary
to orientate the microphones outwards depending on the high frequency directivity pattern.
